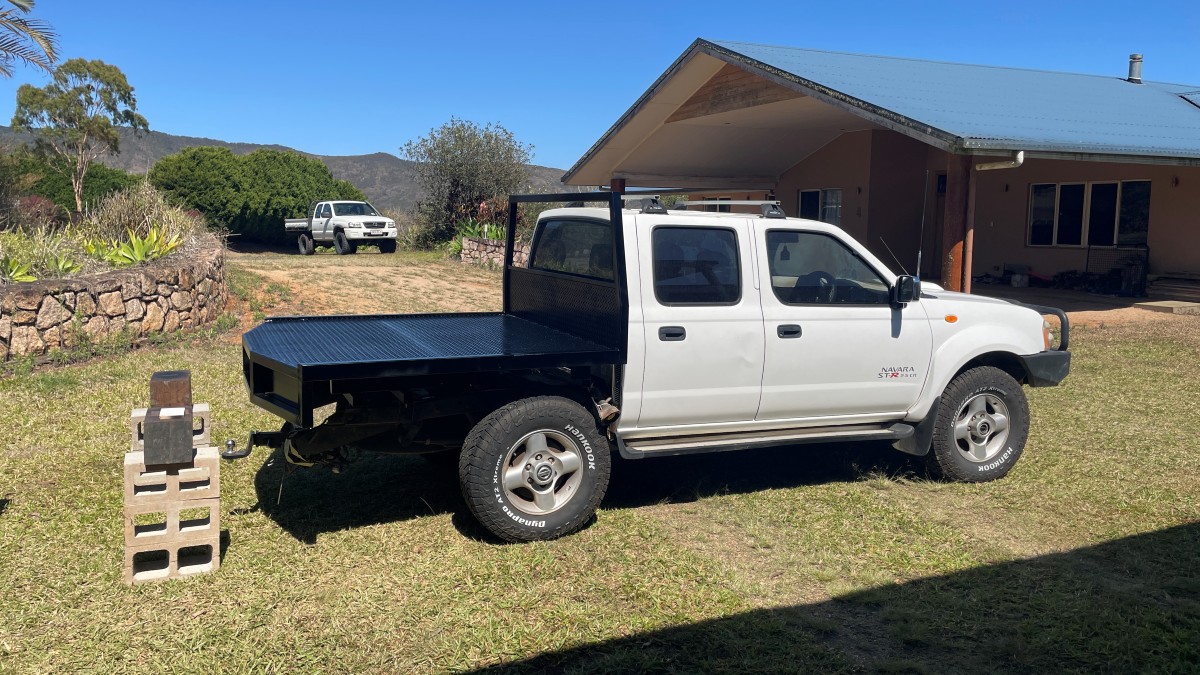

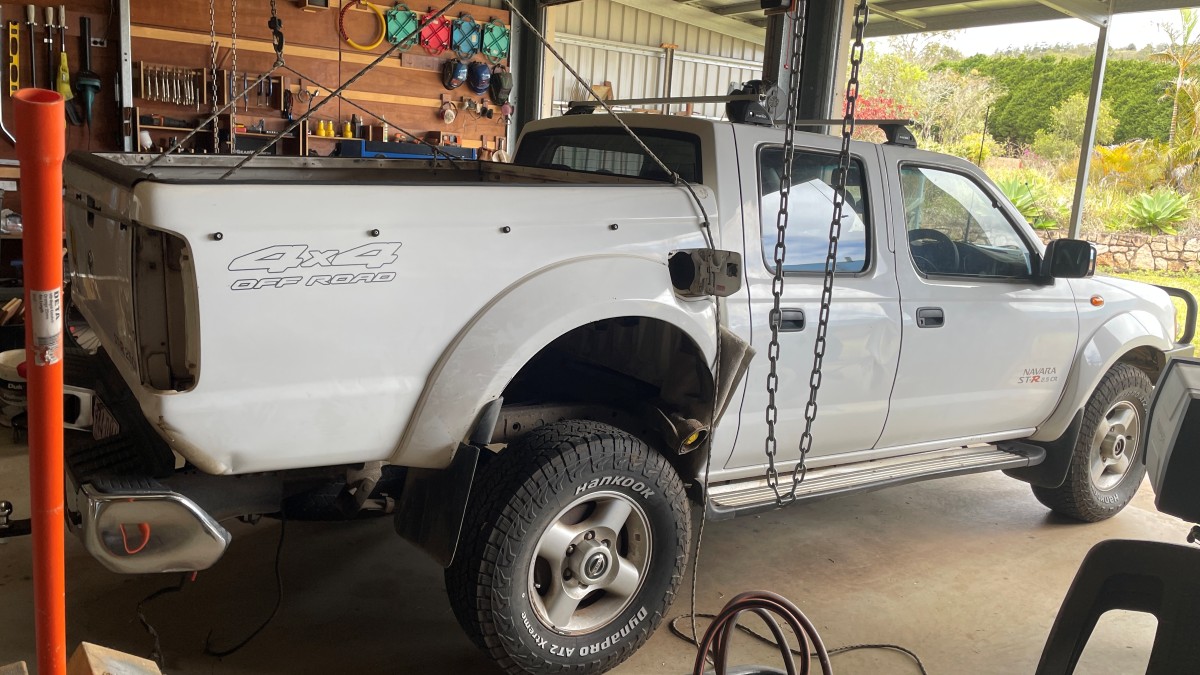

Navara D22 YD25 dual cab tray
Inspiration

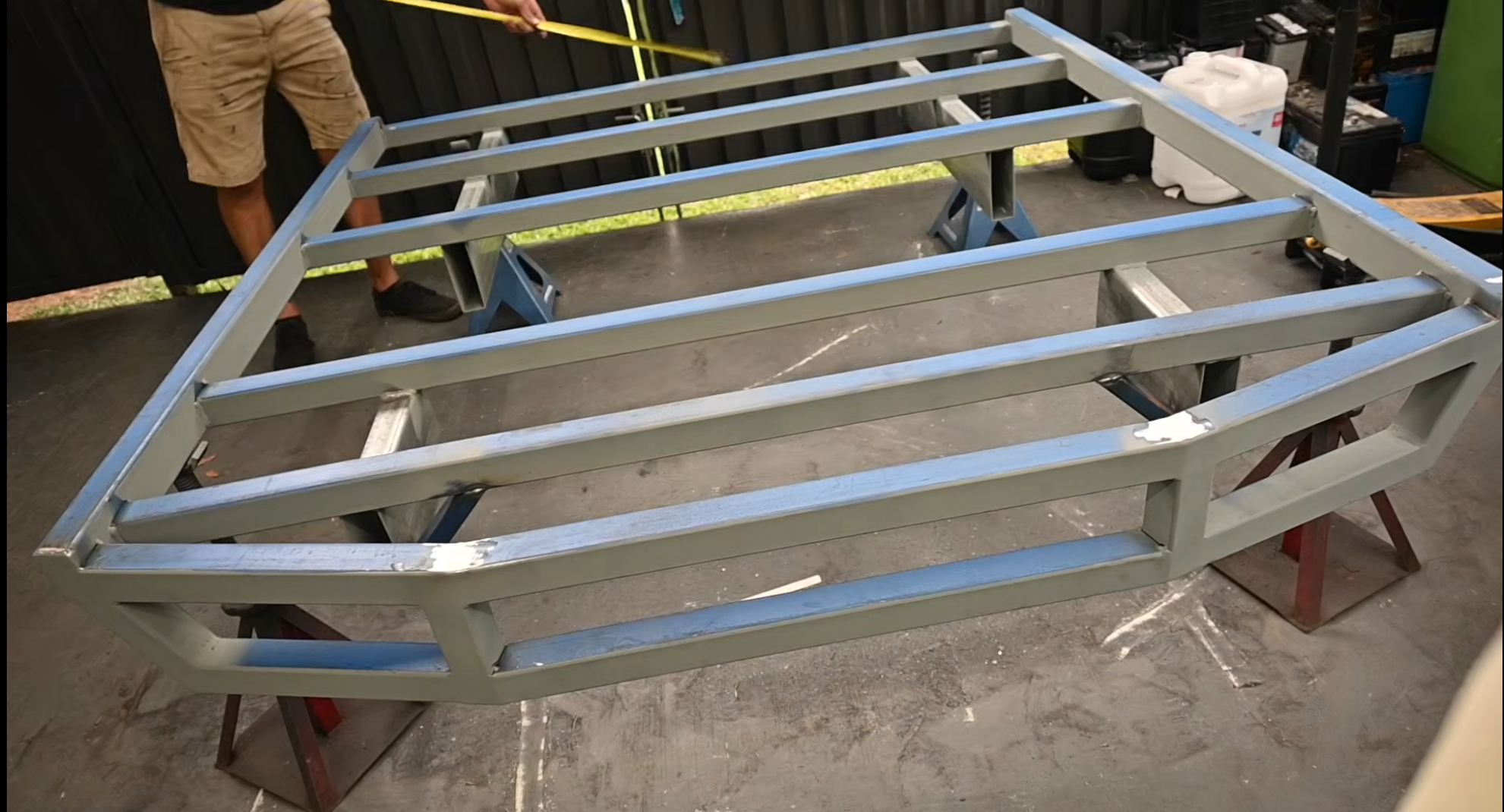

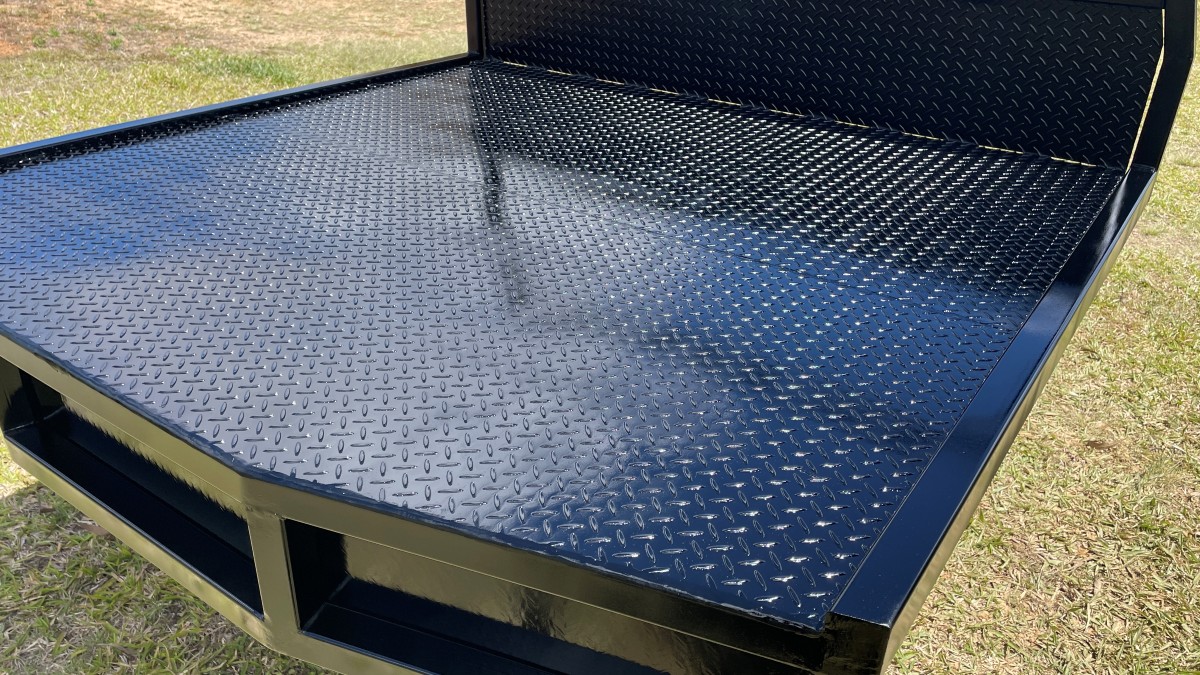

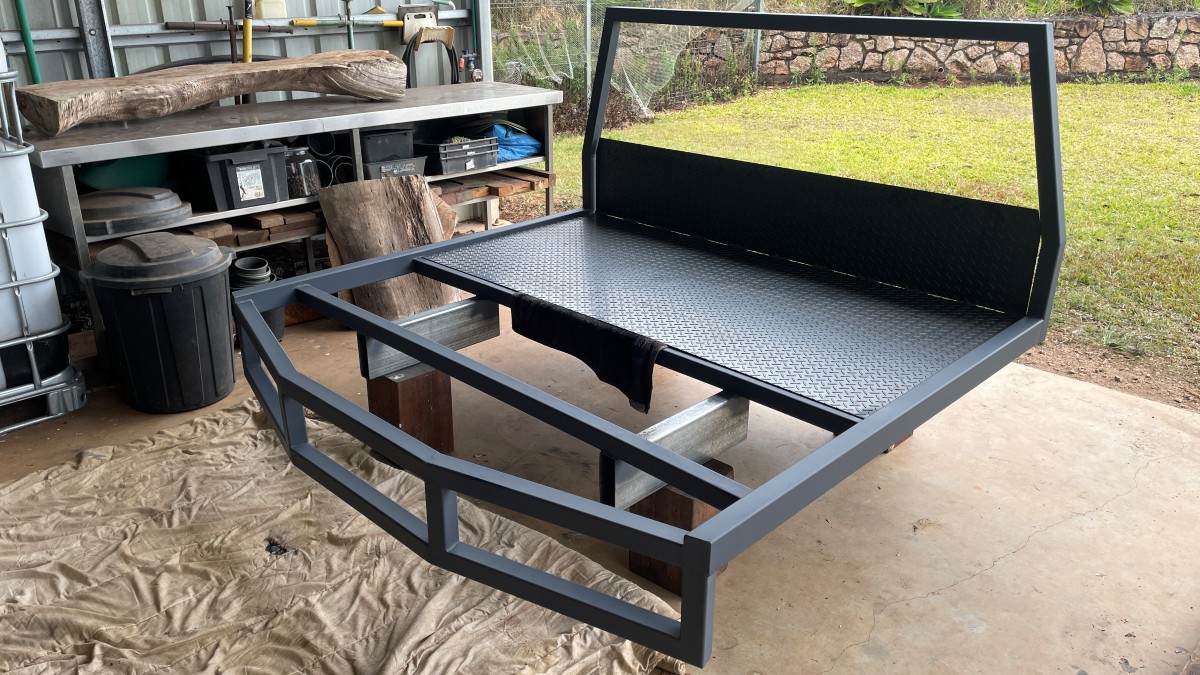

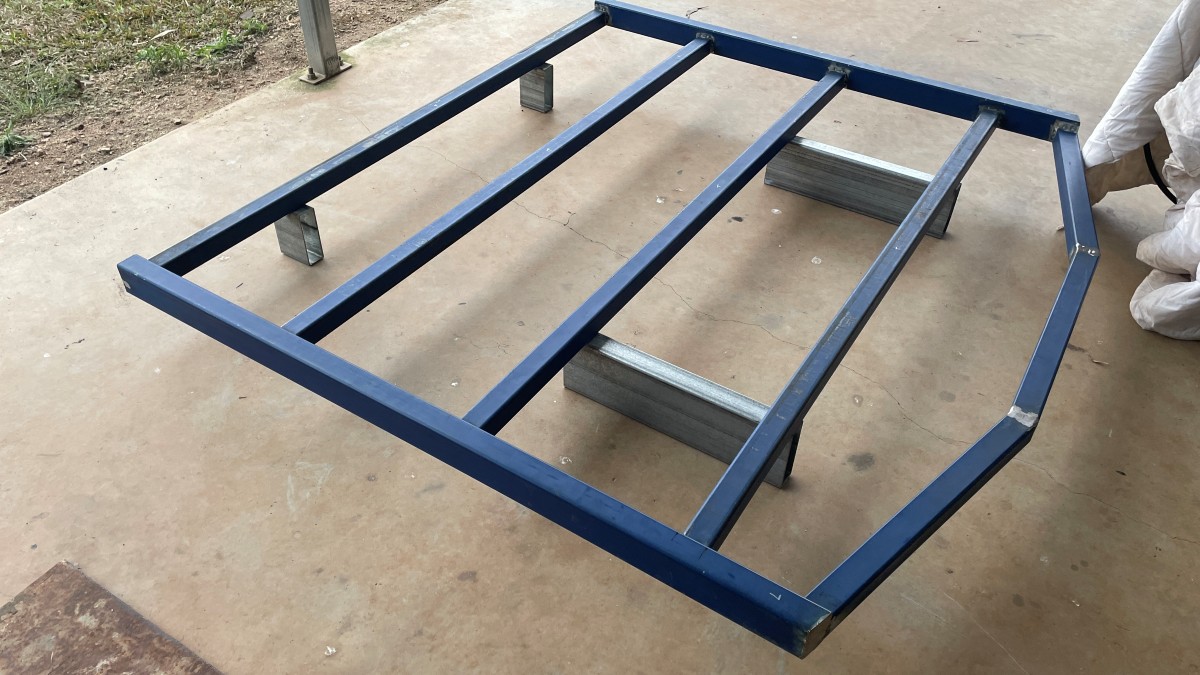

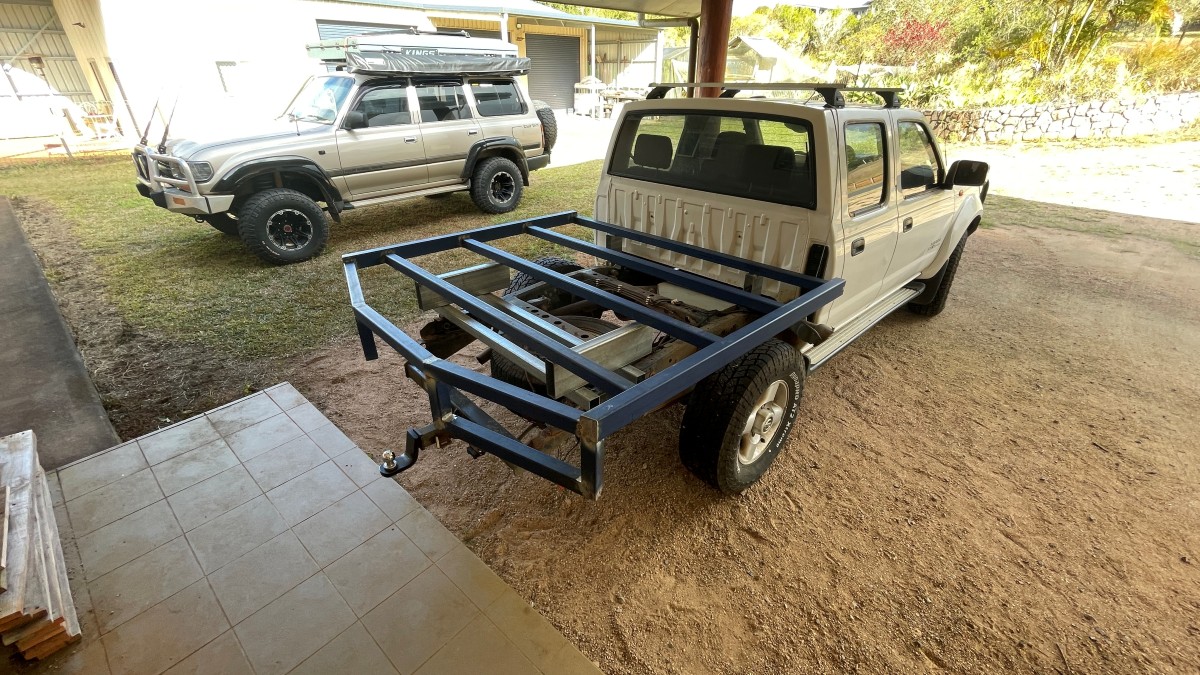

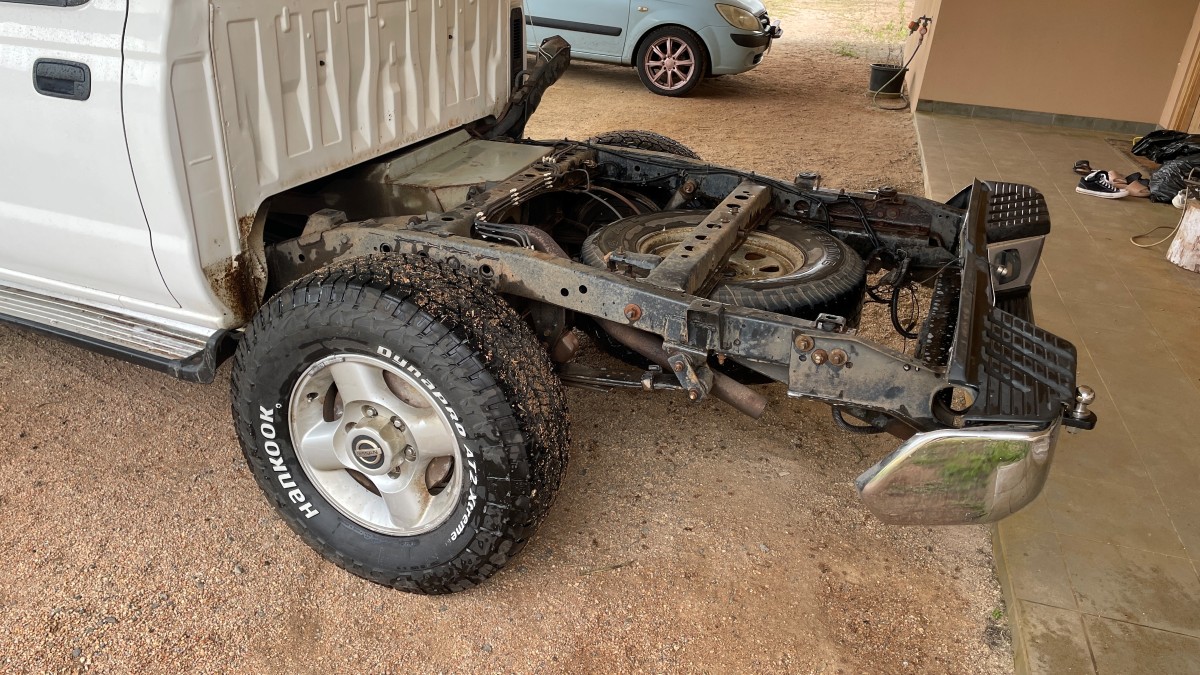

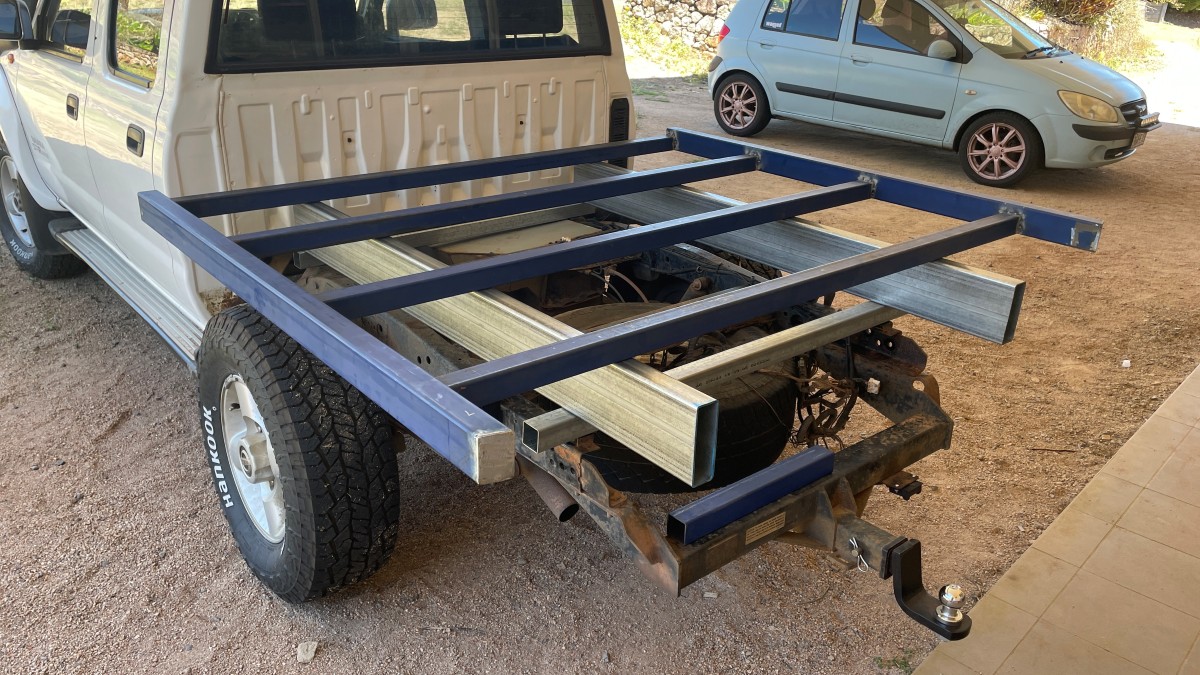

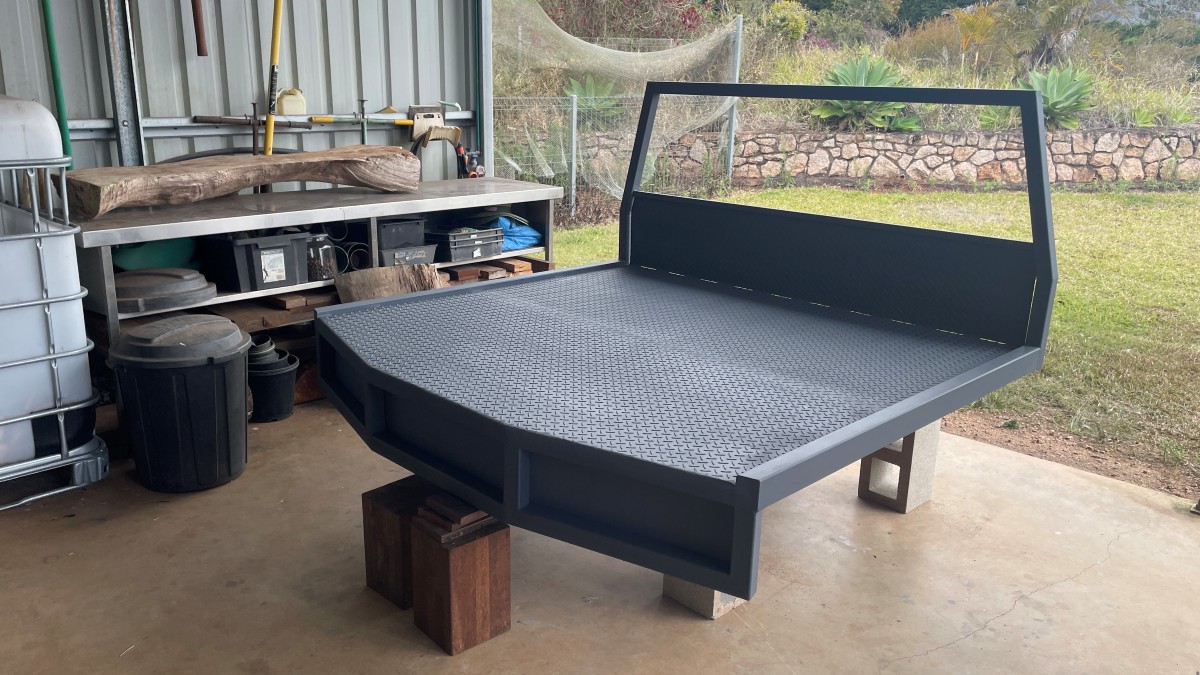

Screenshots
Important
Make sure RHS seam is oriented away from view.
Metal yard:
Full lengths: 8m.
Minimum order length: 4m.
Charges for each cut.
150×50 only comes in galvanized.
Initial purchase:
3x 50x50x3 8m $305 AUD Painted, cut full length in halves, crossmembers, roof rack
1x 75x50x3 4m $77 AUD Painted, long runners
1x 150x50x3 4m $107 AUD Only comes in Duragal

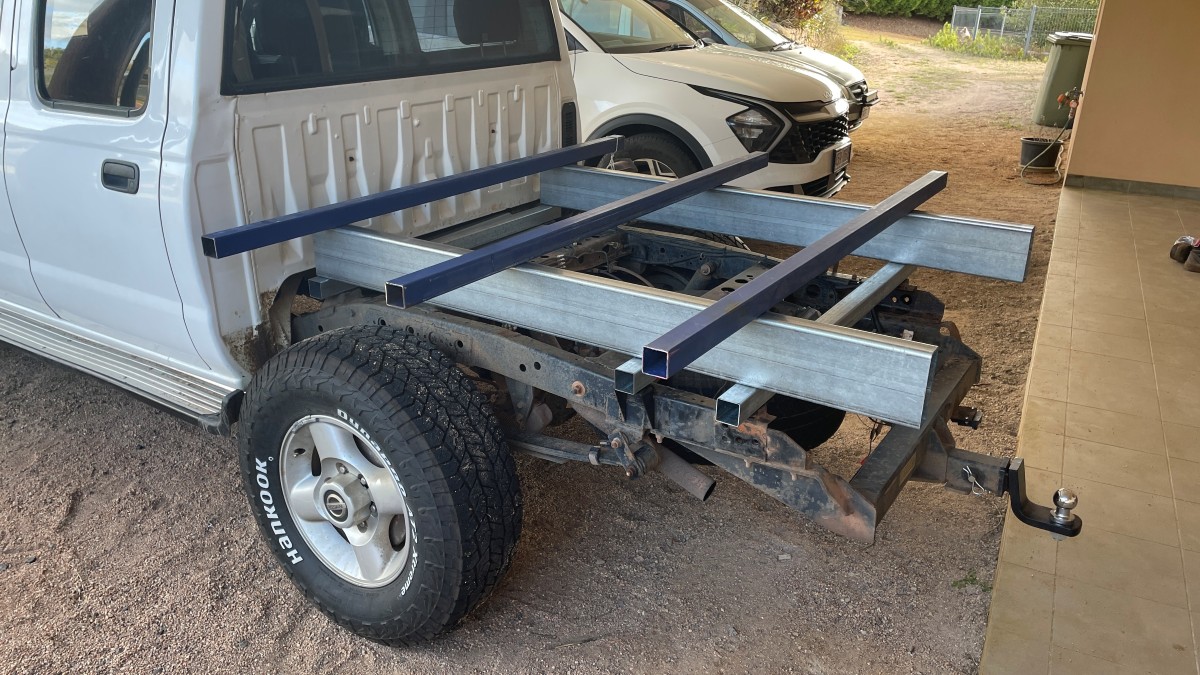

1x 50x50x3 4m $80 AUD Tray mount supports, Duragal

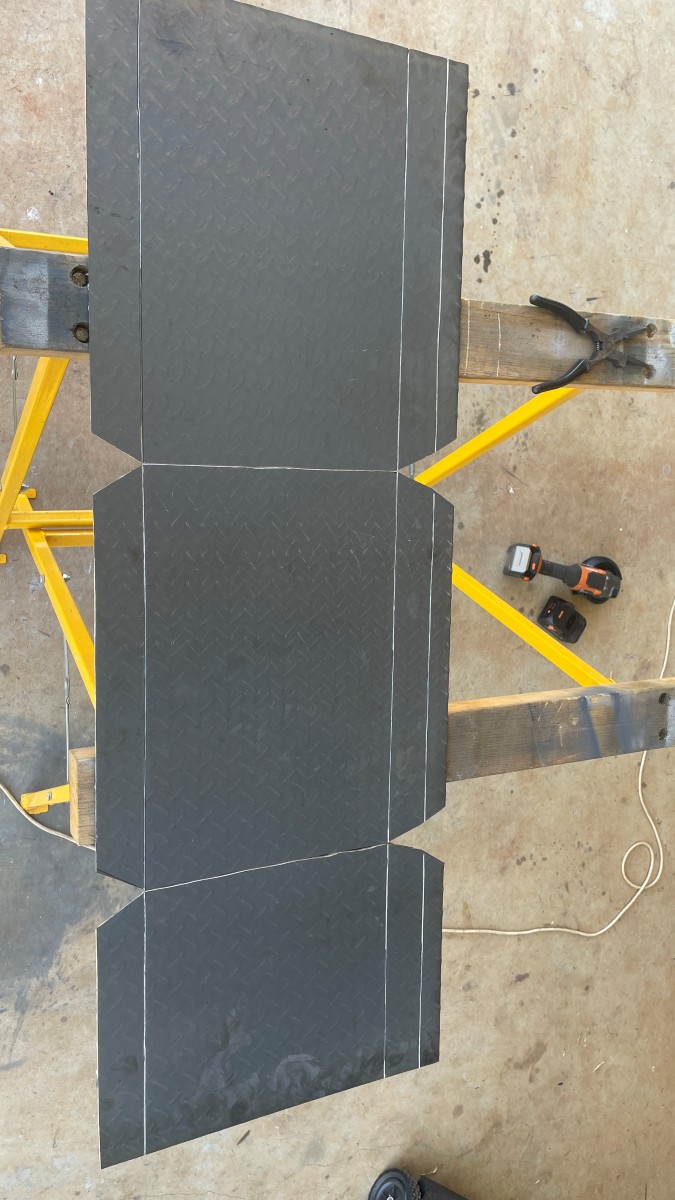

2x 2400x1200x2.1 checker plate $480 AUD
For 15 degree bends:
15 degrees over a 50mm length: tan 15 = opposite / 50. opposite = tan15 * 50 = 13.595mm = 13.6mm
Draw centerline and 6.8mm either side (= 2x 7.5 degrees for 15 degrees total).

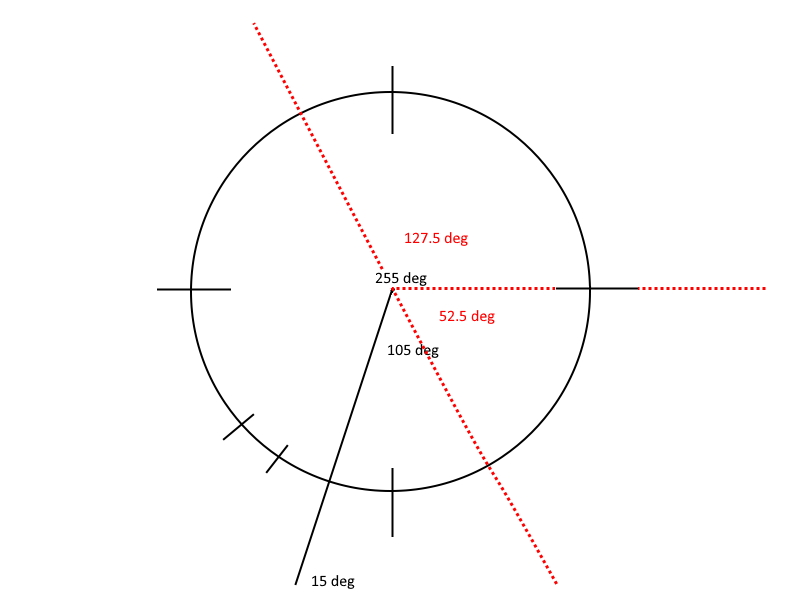

For calculating the horizontal roof bar angle with uprights (coming in at a 15 degrees angle):
Cut uprights and horizontal roof bar at 52.5 degrees each for 105 degrees total. If we subtract the 15 degrees of the uprights this comes down to a perfect 90 degrees.
