HTM Complete – Battery bracket

By telleropnul, May 30, 2025

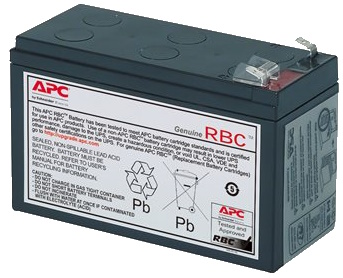

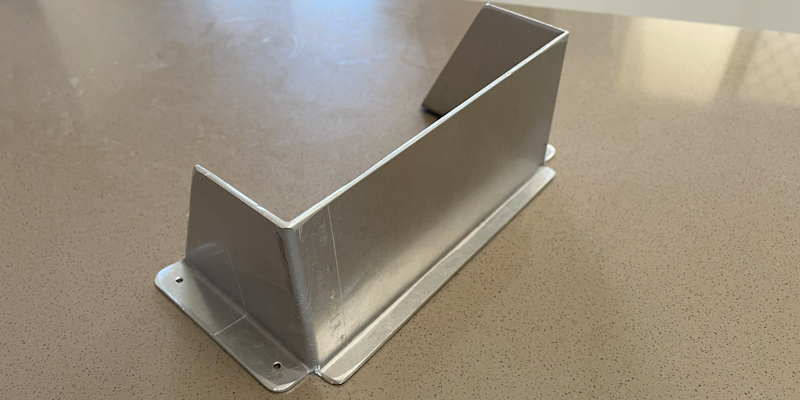

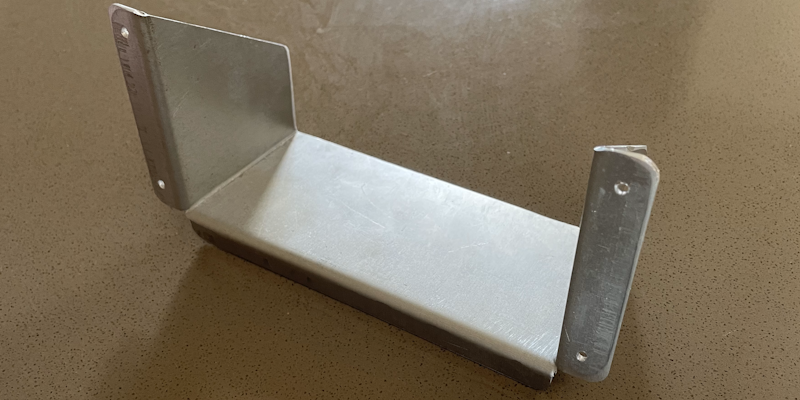

Click on photos to enlarge.  Use back button in web browser to return here.

Material

Aluminium
5052 alloy
2.0mm thickness

Manufacturing

Waterjet or laserjet with smallest diameter cut 2mm.
Not suited for spindle CNC as 1/8″ milling bit = 3.175mm.
Folding required.

Design

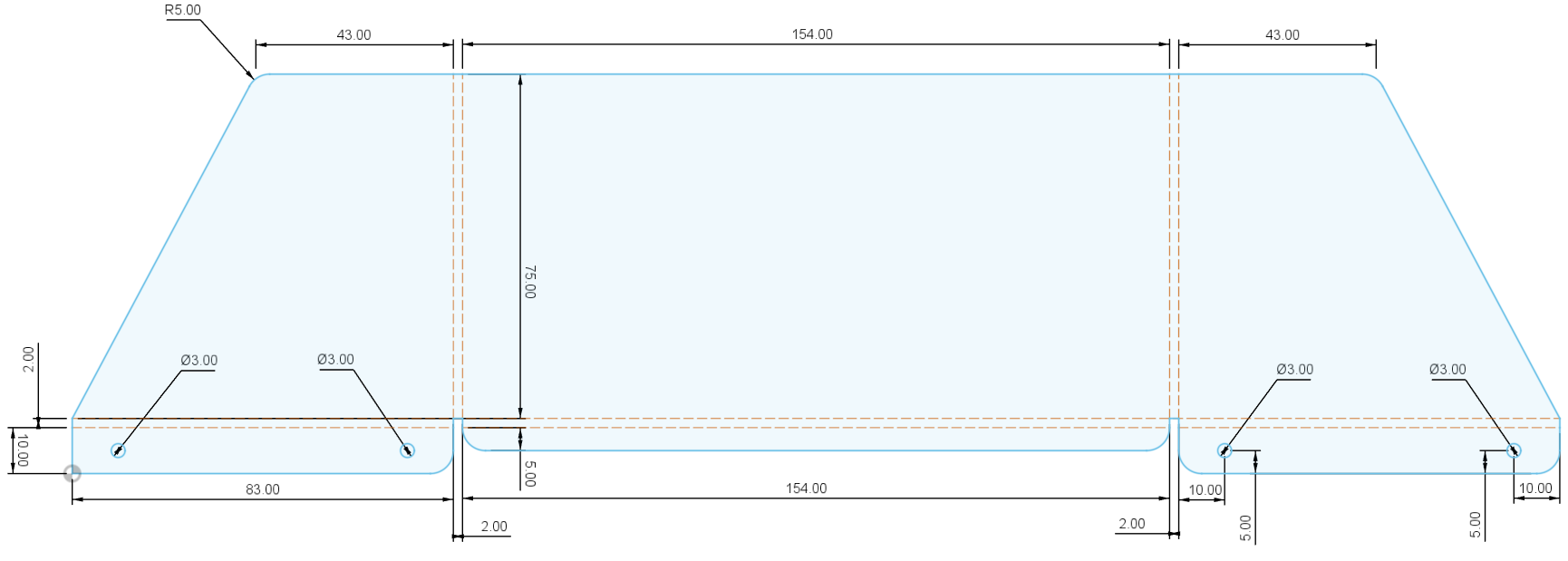

Click on picture to view design in full size.  Use back button in web browser to return here.

2mm dashed lines indicate bend radius.
Industrial ‘pan brake’ is recommended for precise sheet metal folding.

Source files

htm_batt_bracket.dxf
