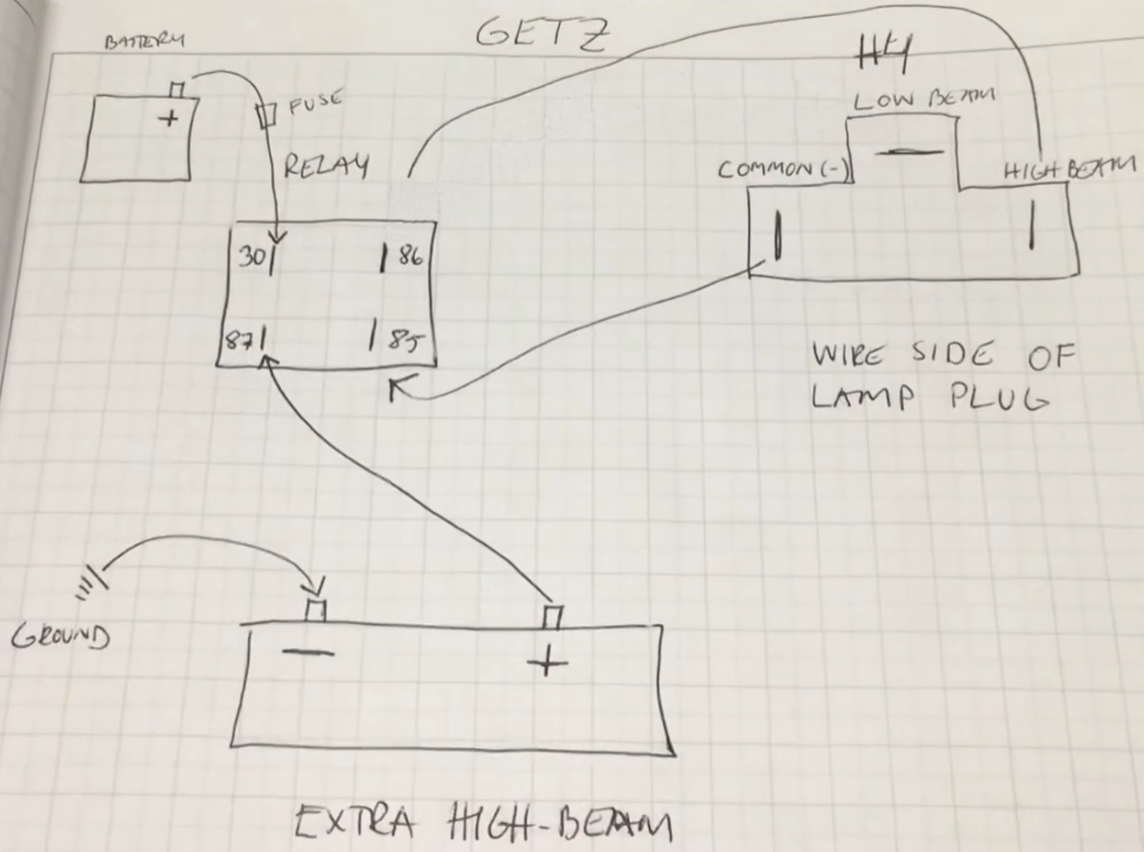

Hyundai Getz LED bar extra high beam wiring schematic

By telleropnul, July 31, 2025

Note: Common(-) and Ground are not the same.  Ground is chassis ground.  Common(-) is part of the headlights circuitry.   Common(-) is connected to ground only when the ignition key is turned to start position when vehicle is running to prevent accidentally leaving your headlights on.  Low beam and high beam terminals are controlled via steering column light switches.
